Niko Cage
Nikon ZR Support
Included

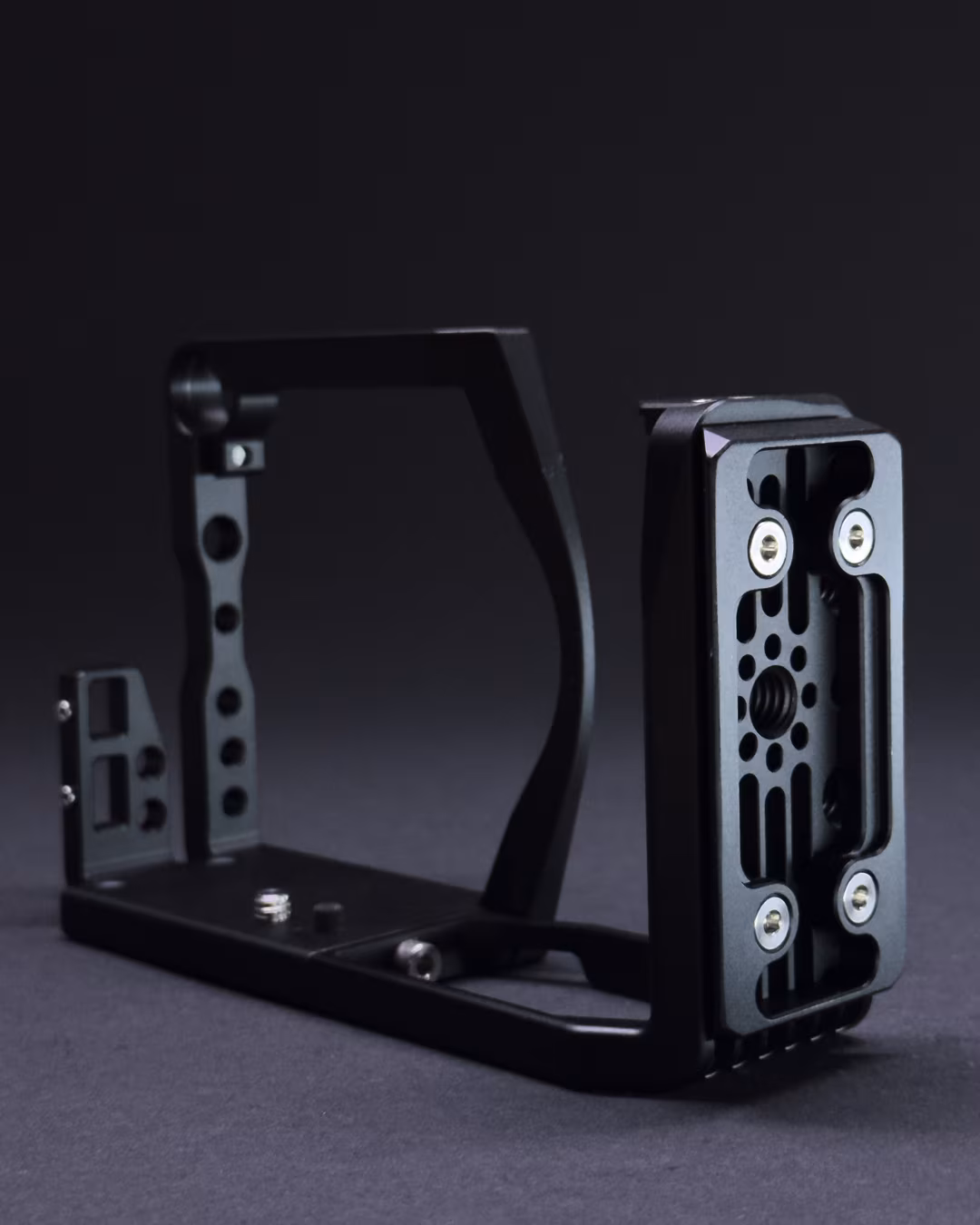

Niko Cage (half cage design)
Niko sidegrip (removable grip support / full cage)
Niko dovetail (removable Arca-Swiss plate)
Niko handle comes free with every order till May 1st.
Optional Accessory
Niko brackets (Kippertie Revolva LC support)
Please add this accessory to your order separately if required.
IN-STOCK
Key Specs
- Half cage design (upgradable to a full cage)
- Integrated 15 mm rod support
- 3/8″ + 1/4″ UNC tripod mount
- Detachable and rigid micro-HDMI and USB-C cable clamp
- Compatible with any lens mount available
- Screen can fully articulate
- Does not obstruct any camera buttons
- Kippertie Adapta LC ready (optional brackets)
Rigid Camera Mounting
The camera is mounted to the cage using one 1/4″-20 UNC screw and an additional stud bolt (3D printed) that fits into the locating hole next to the tripod thread on the camera body.
Tripod/Baseplate
There are one 3/8 UNC and one 1/4 UNC threads for tripod mounting under the removable dovetail plate.

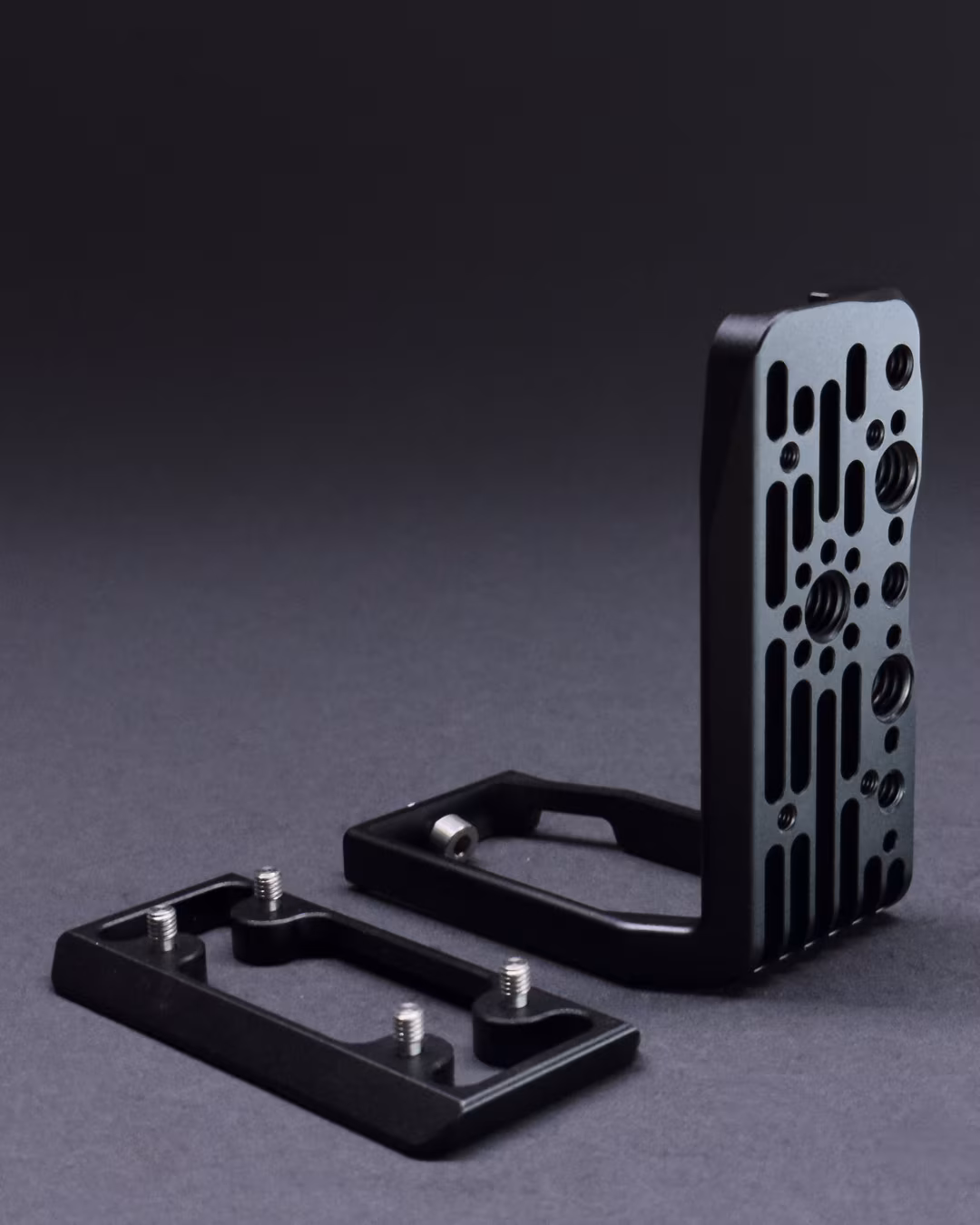

Removable Arca-Swiss Plate
Essential for optimal balancing on The Spinner, especially when used in combination with the DJI RS4 dovetail plate.
15mm Rod Support
Integrated 15mm clamp for seamless focus motor attachment.
Cable Clamp
The cable clamp is detachable and vertically adjustable. SmallRig’s HDMI adapter fits, as do most other cables. If needed, cables can be additionally secured using a small M2 locking screw.
Articulating Screen
The screen can be flipped out and rotated by almost 90°.
Kippertie Revolva LC Ready
The best lens-mount adapter currently available. We developed custom adapter brackets (optional) that fits the Niko Cage perfectly. They are secured to the Adapta using a total of four M4 screws to ensure that even heavier lenses are held absolutely securely and to reduce the strain on the camera’s original mount.
Unboxing/assembling
Niko Cage
Niko sidegrip
Niko dovetail
Niko brackets
Niko handle (prototype)
